Our visible and near infrared cameras are built for ultra-sensitive imaging in defense, industrial, scientific, and specialized monitoring applications.

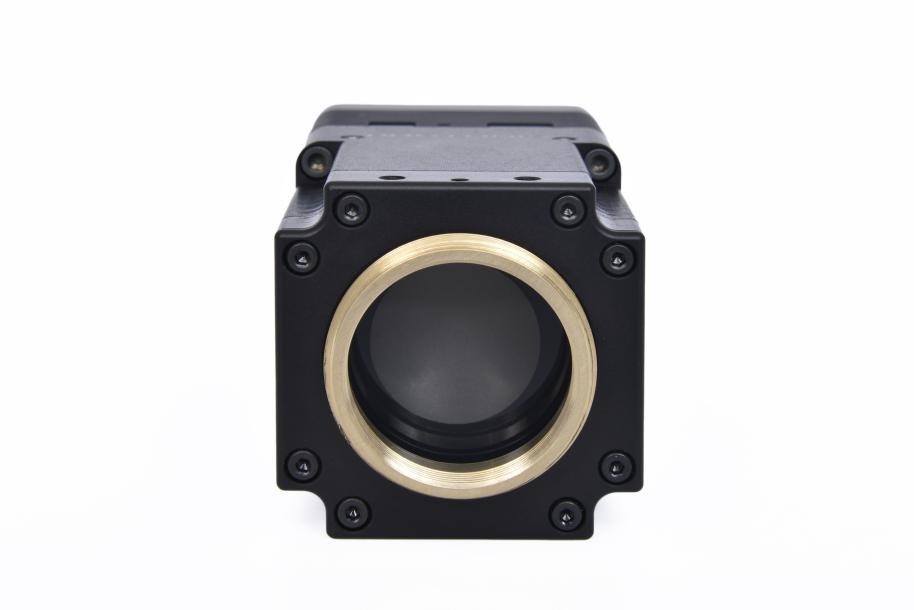

The superior intensified camera extracting the best of image intensifier tube and sensitive low light camera. The iNocturn features a unique combination of ultra-sensitivity, high framerate, high-QE photodetectors, and nano-second gating.
The iNocturn covers different ranges of wavelengths from UV to Near Infrared enabling the user to focus on a specific range of wavelength for a particular application.
Detailed datasheets, brochures and other reference materials are available upon request.
REQUEST FOR INFORMATIONThe iNocturn features an exceptional sensitivity based on high QE image intensifier, ultra-fast gating technology down to a few nanoseconds, which allows it to be coupled with a laser source to perform high fidelity active imaging.

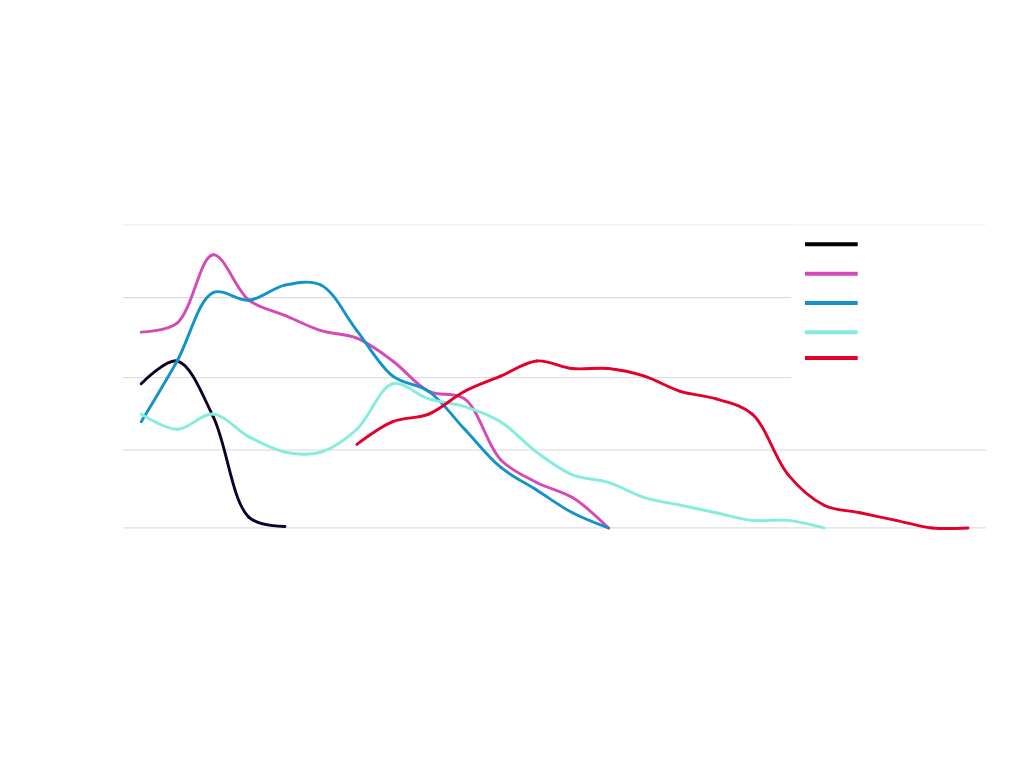

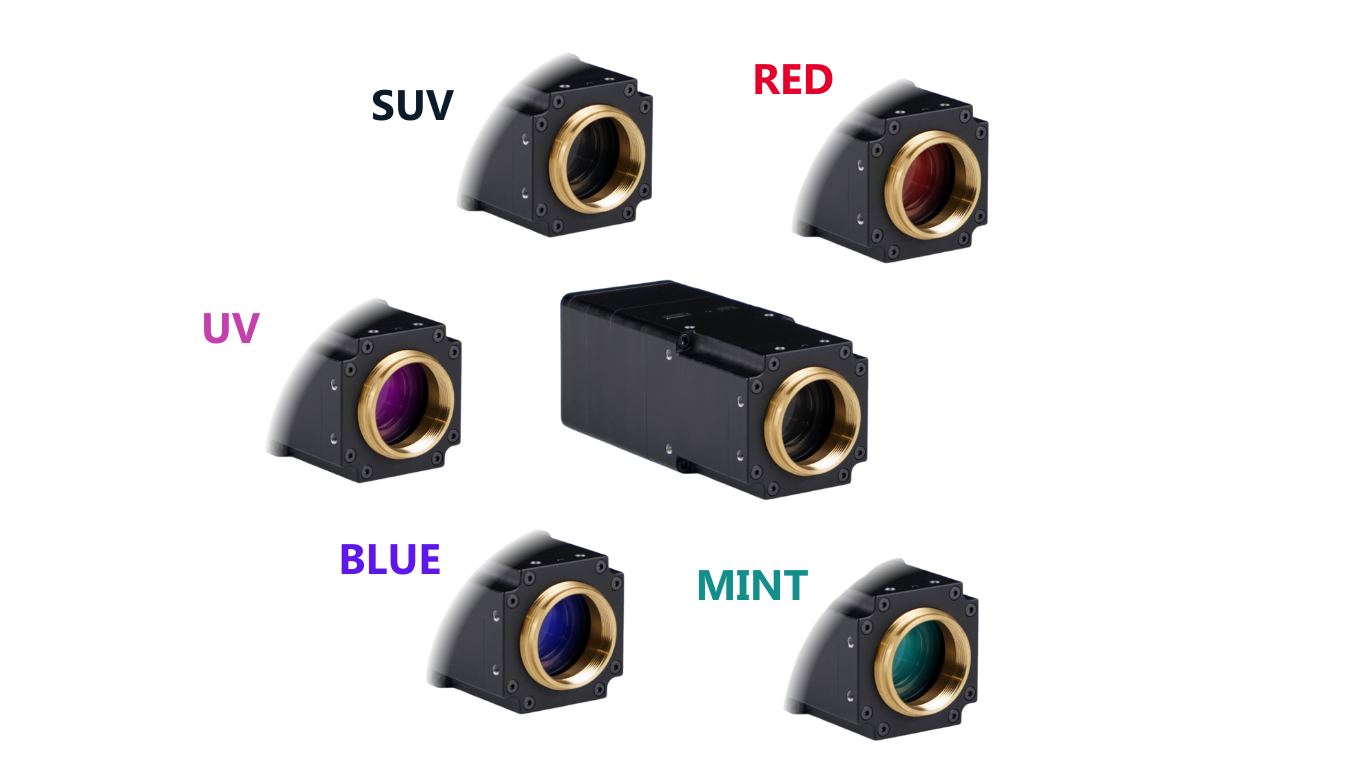

The High QE image intensifier comes with different range of wavelength spanning from UV to Near Infrared enabling the user to focus on a specific range of wavelength for a particular application. For example, spark and electrical discharge detection application is very suitable with the iNocturn SUV, while the iNocturn Blue can be used for other applications that include wafer inspection, spectroscopy and microscopy.
Thanks to the Smart Tube Management, the iNocturn range of camera produces high quality images and videos supporting the ability to perform single photon detection, with an ultra-low read noise reached without the need for any additional cooling.

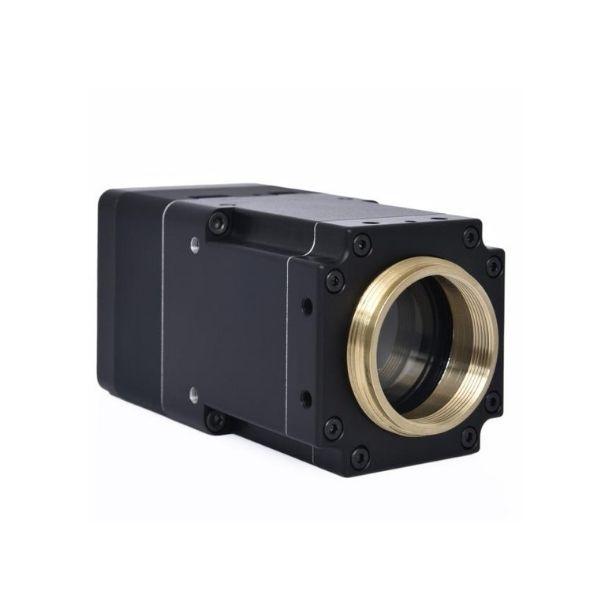

The camera has a high-resolution sensor equipped with a high frame rate for excellent image production, which is well-suited for high speed moving objects in industrial monitoring application for example. The iNocturn is small, compact and light-weighted especially designed for easy integration into any systems.
| Camera resolution | 1280x1024 pixels |
| Frame rate | Up to 100fps at full resolution |
| Spectral response | 200 - 1100nm subjected to photocathode choice |
| Gating options | Gated and non-gated |
| Minimum detection capability | Up to single photon |

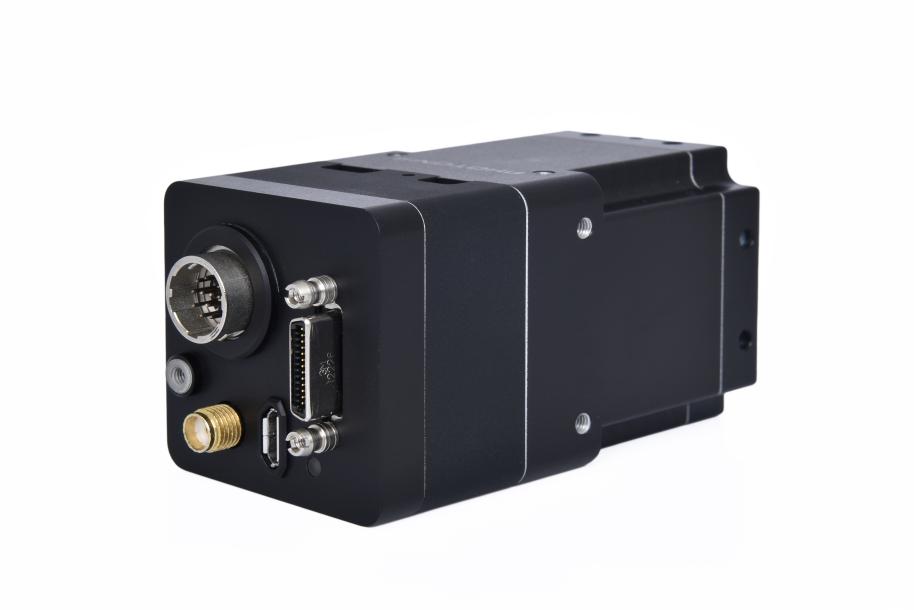

| Connection | HD-SDI, USB 3.0, Camera Link, PAL/NTSC, LVCMOS |
| Lens mount | C-mount |
| Operational temperature | -10 °C to +55 °C |

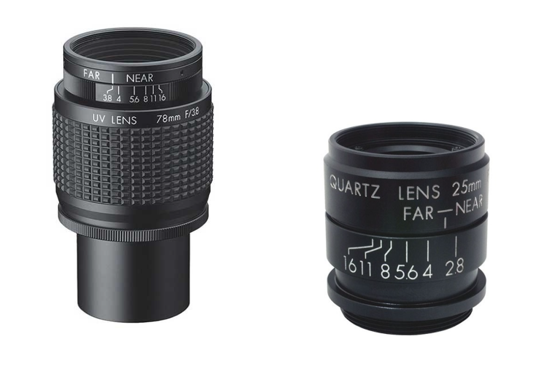

Observing more clear the UV signal
Special lens exclusively designed to perform well with iNocturn SUV to pass selectively UV signal.
| Focal Length (mm) | F-number | Size (mm) | Weight (g) |
|---|---|---|---|
| 25 | 2.8 | 33x25.4 | 33 |
| 78 | 3.8 | 62x109.3 | 446 |
