Specifications
The SmartIR80 is the smallest 80×80 pixels thermal camera within
its family providing fair thermal profile with typical NETD of 80 mK Exclusively designed
for proof-of-concept OEMs, and high-volume integrators.
Long Wave/Thermal cameras (LWIR)
Our LWIR camera cores are ideal for surveillance, homeland security, object detection, industrial and scientific applications.

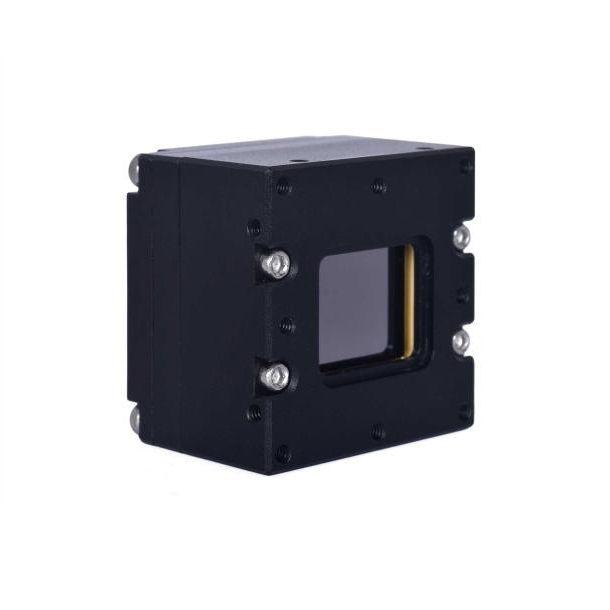

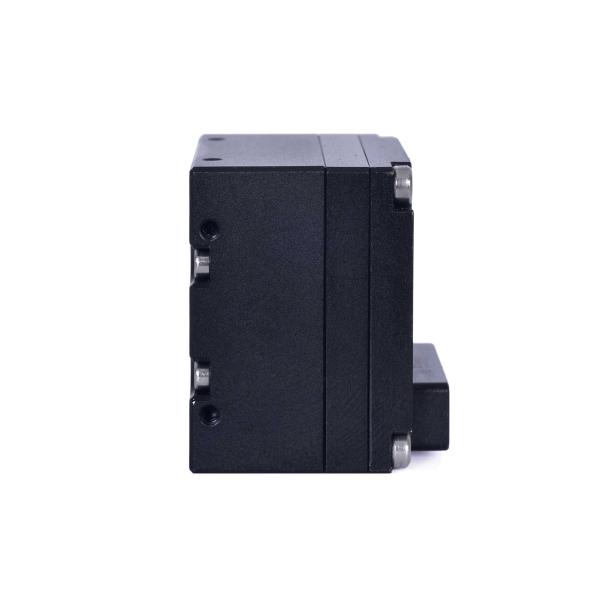

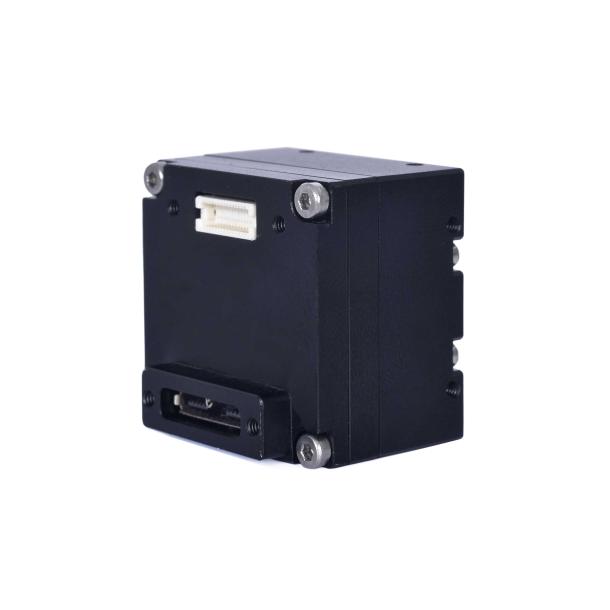

SmartIR
Features
The SmartIR series are true SWaP intelligent thermal imaging camera core. Being the most compact and lightest in their class, their generic design and MIL-STD qualifications fis the expectation of OEMs and thermal camera integrators to be directly integrated for their applications.
- Plug and play
- Compact & lightweight
- Low power consumption
- Up to 120 fps
- Easy to integrate: free SDK & GUI
Description
The SmartIR offers an affordable compact and featherweight thermal imaging cameras exclusively designed for being integrated into customer sub-system, enabling a high quality image generation with low power consumption, and agile configurations.
Request Documentation
Detailed datasheets, brochures and other reference materials are available upon request.
REQUEST FOR INFORMATIONTechnical Information
| SmartIR (34/17µm pixel) | 80 | 60 | 384 | 640 | 1M0 |
| Resolution (pixels) | 80 x 80 | 160 x 120 | 384 x 288 | 640 x 480 | 1024 x 768 |
| Frame rate (maximum) | 50 Hz | 60 Hz | 60 Hz | 120 Hz | 120 Hz |
| Typical NETD (F/1 ; 300K ; 30 Hz) | 80 mK | 50 mK | 30 mK | 25 mK | 40 mK |
| Product Interfaces / Video standards | |
| Modules (host-based processing) | RAW16 over USB2.0 or USB3.0 |
| Engine Cores (embedded processing) | BT656 / YCbCr / CMOS parallel 16bit / PAL-NTSC / Camera Link / SD-SDI / 3G/HD-SDI / MIPI |
| Platforms (for handheld devices) | Digital: BT656 / YCbCr and/or Analog : PAL / NTSC |
| Others | |
| Image processing | Bad Pixel Correction, NUC, Shutterless |
| Image optimization | Global/local AGC, Progressive digital zoom up to x4, Overlays |
| Optics (optional) | 1.5 mm to 100+ mm Focal Distance / 4° to 180° HFOV |
| Operating temperature range | Up to -40°C to +70°C (Extended or Military grade) |
| Qualifications | MIL-STD-810G and MIL-STD-883 (TWS) |
Features
- Compact and feather-weighted
- Easy to integrate
- Low-power consumption
Specifications
The SmartIR160 is powered by 160×120 pixels image sensor providing excellent thermal profile with
typical NETD of 30 mK.. . Exclusively designed for proof-of-concept OEMs, and high-volume integrators.
Specifications
The SmartIR384 is powered by 384×288 pixels image sensor providing excellent thermal profile with
typical NETD of 40 mK.Duly qualified product with reproductible performances, highly appreciated
in mid resolution high volume applications.
Specifications
The SmartIR640 is powered by 640×480 pixels image sensor providing outstanding thermal profile,
with most sensitive version capable of 25 mK typical NETD. Definitely a high-runner with proven
track record, which feature exceptional and reproductible performances in any fields.
Specifications
The SmartIR1M0 is powered by 1024×768 pixels image sensor providing excellent thermal profile
typical NETD of 40 mK. It is the best in class for 17µm high performances electro-optics systems,
the SWaP and reliable solution for long range and/or high resolution applications.
