SWIR – ShortWave
Our SWIR camera offers solutions for various markets including defense, industrial, medical, outdoor activities, public safety and research & development.
AION

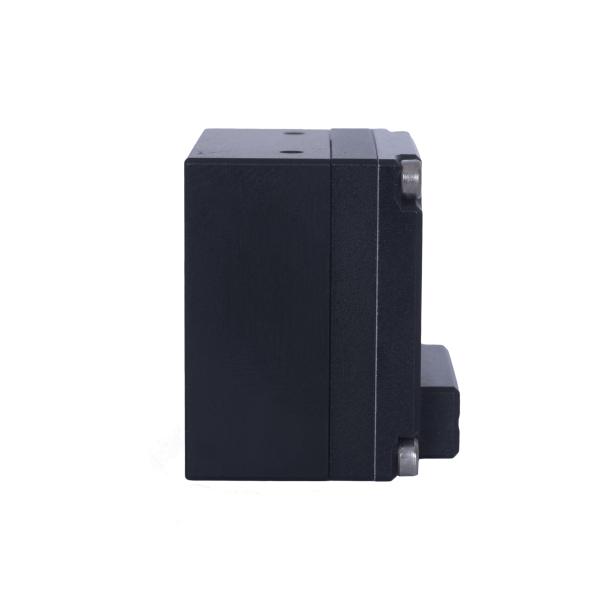

Compact Core Aion
The Aion is a powerful SWIR camera core with sensitive detection at shortwave infrared range. The high performance sensor and low noise feature offers best solution for OEMs and integrators for their demanding applications.
Full tecless SWIR
Compact & lightweight
VGA 15 µm pixel pitch
Description
Aion combines the sensitive SWIR detection and high-quality image generation. This camera core enables agile modular concept and architecture for easy integration into many systems and platforms.
Features
- Uncooled InGaAs sensor
- VGA 15 µm pixel pitch
- Low power consumption
- Compact, ruggedized and easy to integrate
Request Documentation
Detailed datasheets, brochures and other reference materials are available upon request.
REQUEST FOR INFORMATIONTechnical information
| Pixel size | 15 µm |
| Resolution | 640 x 512 |
| Spectral response | 0.9 - 1.7 µm |
| Frame rate | Up to 178 fps |
| Read-out noise | < 50 e- (in high gain) |
| Power consumption | < 1.2 W (@ 30 fps) |
| Dimensions (L x B x H) | 30 x 30 x 26 mm3 |
| Weight | < 50 g |
| Configuration | With or without lens |
| Lens mounting | C type |
| Output options | DF40, CameraLink, USB |
Product Selector Guide
| Part Number | Description |
| XEN-000931 | Aion 640 (178 Hz) |
