SWIR – ShortWave

Based on in-house developed InGaAs linear detector, the Manx rectangular (R) is a high-performance short-wave infrared (SWIR) camera providing high speed and quality line-scan imaging. At unprecedented line rates of up to 256 kHz (or 128 kHz), the Manx rectangular (R) stands as the fastest line-scan InGaAs camera available in the world.

The Manx rectangular (R) is able to provide up to 2048 pixel resolution. It also presents the lowest noise performance record for a 2048 pixel SWIR linear camera, combined with excellent dynamic range. The use of CoaXPress interfacing enables fast and reliable data transfer. The Manx rectangular (R) is offered in 3 different resolutions of 512, 1024 or 2048 pixels.

The Manx rectangular (R) products are suitable for spectroscopy and spectral-domain optical coherence tomography (OCT).

• World's fastest SWIR line-scan imaging up to 256 kHz
• High resolution
• Versatility with 4 gain modes

Specifications

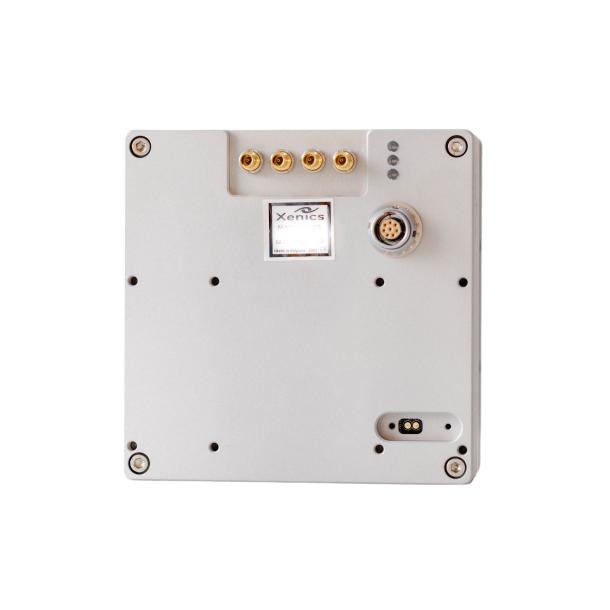

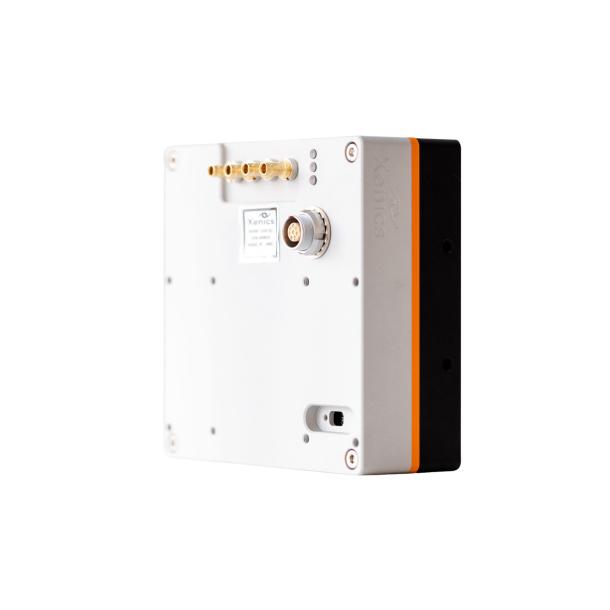

Based on in-house developed InGaAs linear detector, the Manx square (SQ) is a high-performance short-wave infrared (SWIR) camera providing high speed and quality line-scan imaging. At unprecedented line rates of up to 256 kHz (or 128 kHz), the Manx square (SQ) stands as the fastest line-scan InGaAs camera available in the world.

The Manx square (SQ) is able to provide up to 2048 pixel resolution. It also presents the lowest noise performance record for a 2048 pixel SWIR linear camera, combined with excellent dynamic range. The use of CoaXPress interfacing enables fast and reliable data transfer. Manx square (SQ) is offered in 3 different resolutions of 512, 1024 or 2048 pixels.

Silicon wafer inspection, TFT screen inspection, food and agricultural produce sorting are some industrial applications that would benefit from this new line of ultra-fast linear SWIR cameras.

• World's fastest SWIR line-scan imaging up to 256 kHz
• High resolution
• Versatility with 4 gain modes

Specifications

Our standard IR software, Xeneth, is included with this camera. Find out more: Software | Xenics

Our cameras are compatible with a wide variety of lenses.

We do not manufacture our own lenses, but instead offer a variety of third-party lenses that can be purchased directly from us. We guarantee compatibility for any lenses purchased directly from Xenics.

The Xenics product range includes several products that require a frame grabber card to connect the camera to a PC.

The Euresys GRABLINK full, Imperx VCE-CLEX01 and National Instruments PCIe-1433 frame grabbers are fully integrated in Xeneth and the Xeneth SDK. This means that you can use Xeneth software both to control the camera and to grab images, making abstraction of the proprietary frame grabber software.

Other frame grabbers properly integrating the CameraLink and GigE Vision protocol can be used in Xeneth and the Xeneth SDK, however only for command and control of the camera. To grab images you rely on the dedicated software provided by the frame grabber vendors.

Xenics develops flexible and modular cameras resulting in a wide variety of camera interfaces. All these interfaces require unique cabling which we keep in stock. Next to interface cables we also offer separate power supplies.

Xenics ships its infrared cameras all over the world in high-grade custom cases. As our infrared cameras have different sizes, we have several case-types in stock guaranteeing a tight fit. The cases are made of polypropylene which makes them very sturdy. They are dustproof, watertight, stackable and can cope with temperatures between -40 °C and 80 °C. In addition, they are equipped with an automatic air pressure compensation valve allowing us to ship the cameras all over the globe.

Most of our infrared cameras come with a standard hardshell case upon purchasing.

A filter can be fitted in the C-mount lens adapter of most Xenics cameras. The following Xenics SWIR cameras have a standard filter holder in the C-mount adapter (only one filter can be mounted and filter has to be 25.4 mm in diameter):

1. Bobcat 320 and 640
2. Cheetah 640 CL
3. Lynx

In order to lock the filter in the c-mount adapter, the following filter retainer ring has to be ordered from Xenics, part number: MEC-000614

For a list of suitable filters, please directly contact the filter supplier, Spectrogon, for filter purchases. Please check camera and filter documentation for compatible wavelength ranges.
