SWIR – ShortWave

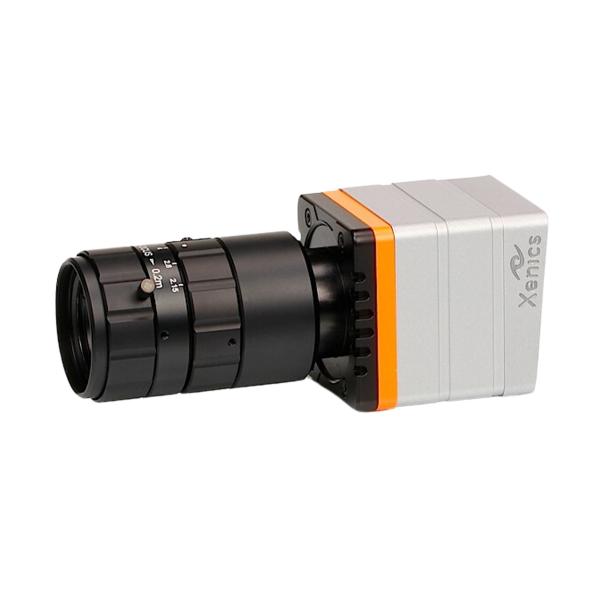

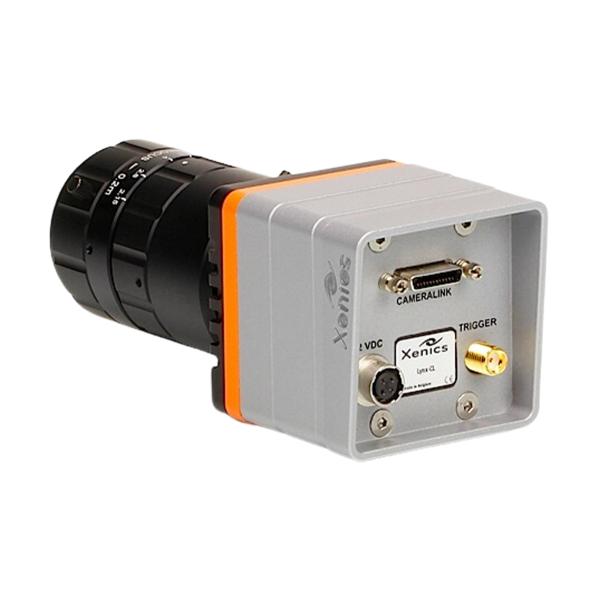

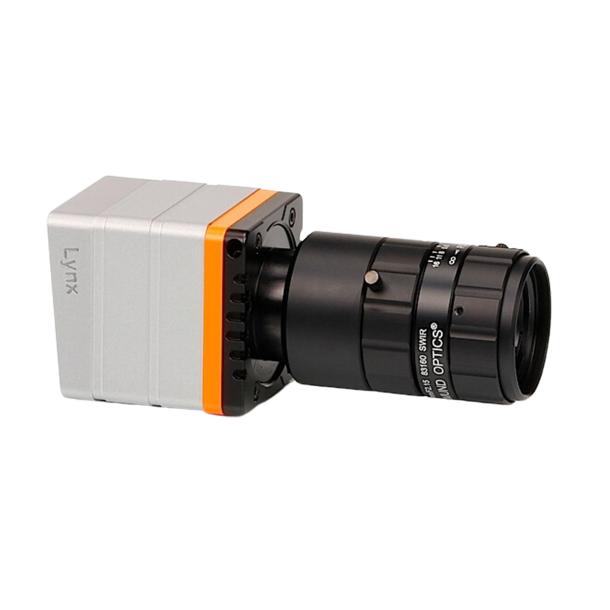

The Lynx square (SQ) series, based on an in-house developed linear InGaAs detector, offers affordable short-wave infrared (SWIR) line-scan imagers. The Lynx SQ cameras are able to image line rates up to 40 kHz, for demanding machine vision applications. The camera comes with industry standard CameraLink or GigE Vision interfaces. Depending on your imaging requirements, three resolutions of 512, 1024, or 2048 pixels are offered. The cameras have standard on-board image correction featuring non-uniformity correction (NUC), bad pixel replacement (BPR) and gain control.

• High speed line-scan imaging up to 40 kHz
• High resolution 512/1024/2048 square pixels option
• CameraLink or GigE Vision interfacing

Specifications

The Lynx R series, based on an in-house developed linear InGaAs detector, is a high-performance short-wave infrared (SWIR) camera providing high speed and quality line-scan imaging. The Lynx R cameras are able to image line rates up to 40 kHz, for demanding spectroscopy applications. The camera comes with an industry standard CameraLink or GigE Vision interface.

• High speed line-scan imaging up to 40 kHz (10 kHz for the 2048)
• High resolution 1024/2048 rectangular pixels option (12.5 µm x 250 µm)
• CameraLink or GigE interfacing

Specifications

Our standard IR software, Xeneth, is included with this camera. Find out more: Software | Xenics

Our cameras are compatible with a wide variety of lenses.

We do not manufacture our own lenses, but instead offer a variety of third-party lenses that can be purchased directly from us. We guarantee compatibility for any lenses purchased directly from Xenics.

The Xenics product range includes several products that require a frame grabber card to connect the camera to a PC.

The Euresys GRABLINK full, Imperx VCE-CLEX01 and National Instruments PCIe-1433 frame grabbers are fully integrated in Xeneth and the Xeneth SDK. This means that you can use Xeneth software both to control the camera and to grab images, making abstraction of the proprietary frame grabber software.

Other frame grabbers properly integrating the CameraLink and GigE Vision protocol can be used in Xeneth and the Xeneth SDK, however only for command and control of the camera. To grab images you rely on the dedicated software provided by the frame grabber vendors.

Xenics develops flexible and modular cameras resulting in a wide variety of camera interfaces. All these interfaces require unique cabling which we keep in stock. Next to interface cables we also offer separate power supplies.

Xenics ships its infrared cameras all over the world in high-grade custom cases. As our infrared cameras have different sizes, we have several case-types in stock guaranteeing a tight fit. The cases are made of polypropylene which makes them very sturdy. They are dustproof, watertight, stackable and can cope with temperatures between -40 °C and 80 °C. In addition, they are equipped with an automatic air pressure compensation valve allowing us to ship the cameras all over the globe.

Most of our infrared cameras come with a standard hardshell case upon purchasing.

A filter can be fitted in the C-mount lens adapter of most Xenics cameras. The following Xenics SWIR cameras have a standard filter holder in the C-mount adapter (only one filter can be mounted and filter has to be 25.4 mm in diameter):

• Bobcat 320 and 640
• Cheetah 640 CL
• Lynx

In order to lock the filter in the c-mount adapter, the following filter retainer ring has to be ordered from Xenics, part number: MEC-000614

For a list of suitable filters, please directly contact the filter supplier, Spectrogon, for filter purchases. Please check camera and filter documentation for compatible wavelength ranges.
