LWIR – LongWave
Our LWIR camera cores are ideal for surveillance, homeland security, object detection, industrial and scientific applications.
Ceres

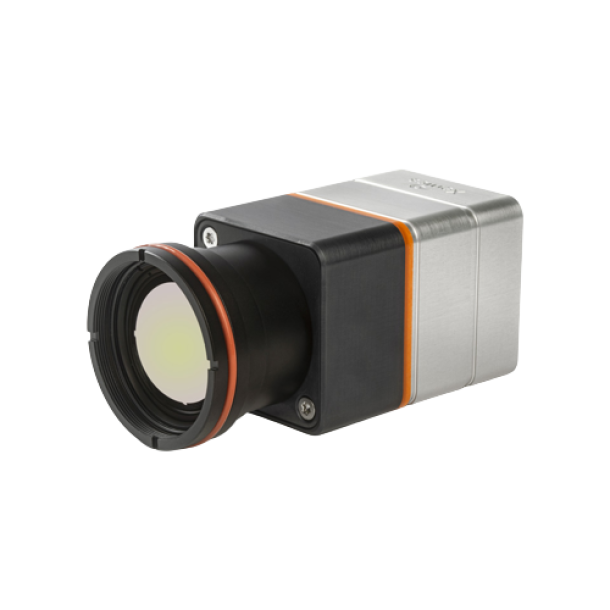

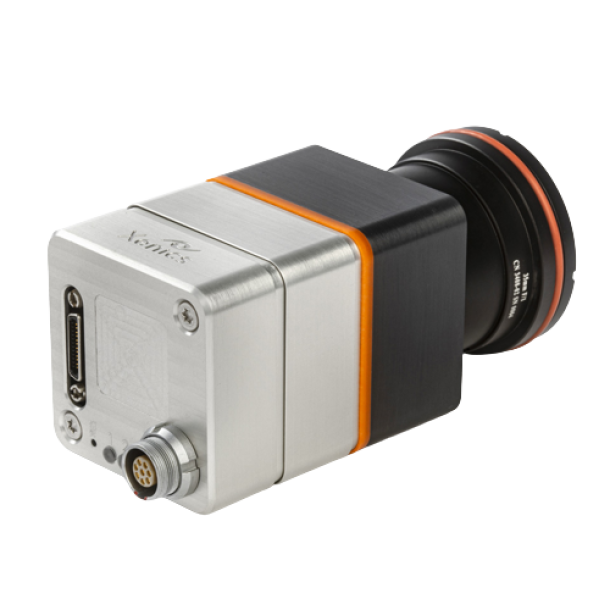

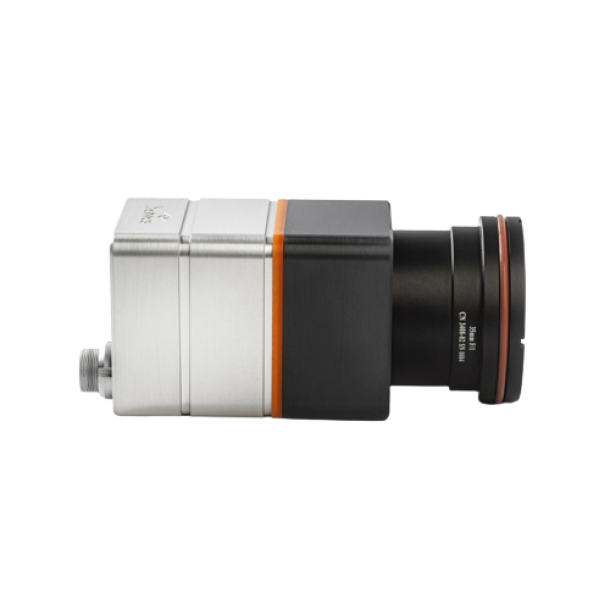

Ceres HR thermal camera
High resolution thermal camera: The Ceres series consists of long-wave infrared (LWIR) uncooled cameras based on a state-of-the-art microbolometer detector with a pixel pitch of 12 µm and has a NETD less than 50 mK (< 40 mK, available upon request). The Ceres GigE Vision cameras come with a standard PTP (Precision Time Protocol), ensuring synchronized operation in a multi-camera system.
Description
The Ceres series is designed for high-resolution thermal imaging where image quality and synchronized operation are essential. Built on advanced LWIR uncooled technology, it offers robust performance for integration into security, defense, and industrial systems.
Request Documentation
Detailed datasheets, brochures and other reference materials are available upon request.
REQUEST FOR INFORMATIONTechnical Information
| Camera Specifications | Ceres HR |
| Pixel pitch | 12 µm |
| Camera type | LWIR uncooled thermal camera |
| Spectral range | 8 - 14 µm |
| Detector NETD | < 50 mK (< 40 mK available upon request) |
| Video interface | GigE Vision |
| Synchronization | PTP (Precision Time Protocol) |
Features
- High-resolution LWIR uncooled thermal camera
- 12 µm pixel pitch microbolometer detector
- Detector NETD < 50 mK (< 40 mK available upon request)
- GigE Vision camera with integrated PTP synchronization
