Gobi

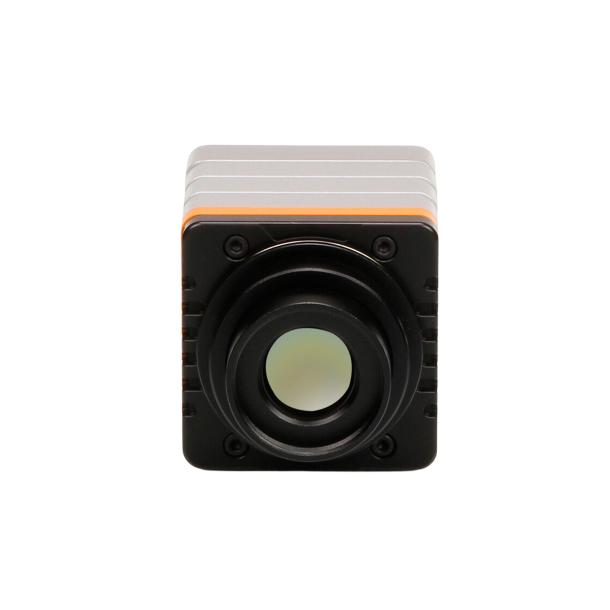

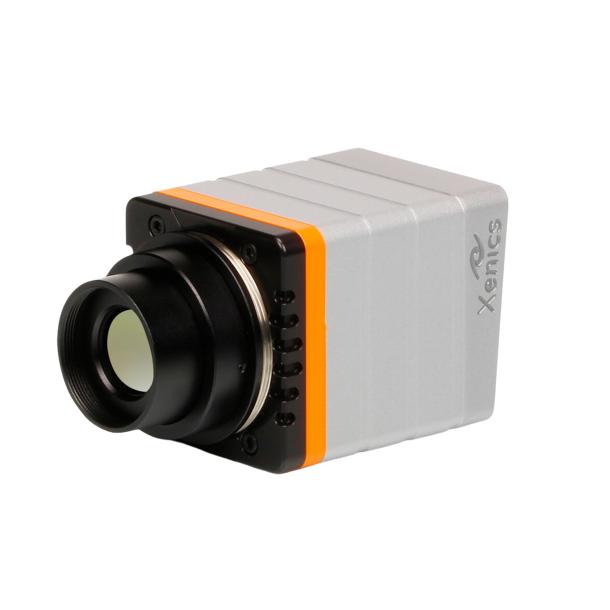

Gobi HP thermal camera
High performance thermal camera: The Gobi+ cameras are based on an uncooled microbolometer detector with a 640 x 480 pixel resolution. The Gobi+ offers frame rates up to 60 Hz and lower detector NETD options (<30 mK available upon request). The camera is designed for use in scientific & advanced research, medical and process monitoring applications.
Compact size
Temperature calibrations for thermographic applications
Easy connectivity via multiple interfaces (CameraLink or GigE Vision)
Description
The Gobi+ is based on a 17µm pitch two dimensional microbolometer array with VGA resolution (640 columns of pixels by 480 lines). This highly sensitive camera can detect differences in temperature as low as 0.05°C and can output data at 60 frames per second. It exists with CameraLink and GigE Vision output and control interfaces, and is GenICam compliant, making it simple and straightforward to integrate into industrial systems. The key feature of the Gobi+ for thermography is its calibration. The camera can be calibrated in temperature. The use of such a calibration pack makes it a very accurate system for absolute temperature measurement.
Request Documentation
Detailed datasheets, brochures and other reference materials are available upon request.
REQUEST FOR INFORMATIONTechnical Information
| Mechanical Specifications | Gobi+ 640 GigE | Gobi+ 640 CL |
| Approximate dimensions - excluding lens [width x height x length] [mm] | 49 x 49 x 79 | 49 x 49 x 62 |
| Weight [gr] - excluding lens | 263 | 208 |
| Optical interface | M42 or M34 x 0.75 | M42 or M34 x 0.75 |

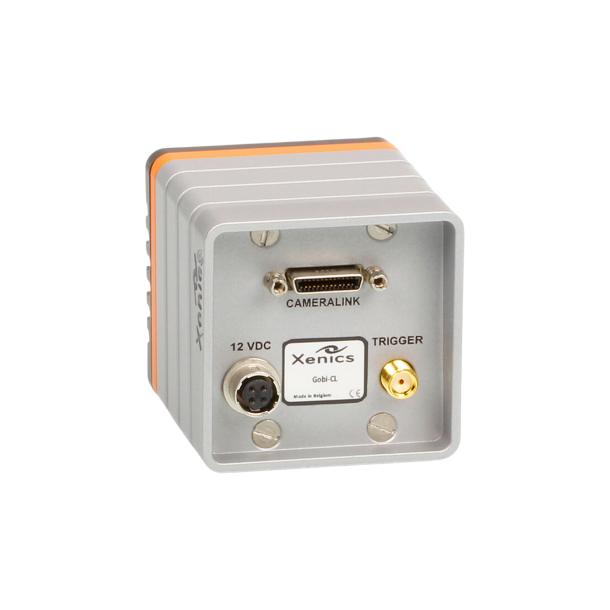

| Connector GigE | RJ-45 | - |
| Connector CameraLink | - | Standard SDR |
| Connector power | Hirose HR10-7R-SA [73] | Hirose HR10-7R-SA [73] |
| Connector trigger | SMA | SMA |
| Environmental & Power Specifications | Gobi+ 640 GigE | Gobi+ 640 CL |
| Ambient operating temperature range [°C] | From -40 to +60; also available in temperature range 0 - 50 | From -40 to +60; also available in temperature range 0 - 50 |
| Storage temperature [°C] | From -45 to +85 | From -45 to +85 |
| Power consumption [W] | 4.6 | 2.9 |
| Power supply voltage | DC 12 V or PoE (Power over Ethernet) | DC 12 V |
| Shock | 40 g, 11 ms, MIL-STD810G/ MIL-STD883J | 40 g, 11 ms, MIL-STD810G/ MIL-STD883J |
| Vibration | 5 g [20 to 2000 Hz], MIL-STD810G/ MIL-STD883J | 5 g [20 to 2000 Hz], MIL-STD810G/ MIL-STD883J |
| IP rating | IP40 | IP40 |
| Regulatory compliance | CE, RoHS | CE, RoHS |
| Electro-Optical Specifications | Gobi+ 640 GigE | Gobi+ 640 CL |
| Image format [pixels] | 640 x 480 | 640 x 480 |
| Pixel pitch [µm] | 17 | 17 |
| Detector type | a-Si microbolometer | a-Si microbolometer |
| Integration type | Rolling shutter | Rolling shutter |
| Active area and diagonal [mm] | 10.88 x 8.16 [13.6 diagonal] | 10.88 x 8.16 [13.6 diagonal] |
| Detector NETD (Noise Equivalent Temperature Difference) [mK] | <50 [at 30 Hz, 300 K, F/1] [< 30 mK available upon request] | <50 [at 30 Hz, 300 K, F/1] [< 30 mK available upon request] |
| Spectral range [µm] | 8 to 14 | 8 to 14 |
| Pixel operability | >99.5% | >99.5% |
| Max frame rate [Hz] (full frame) | 60 [or 9] | 60 |
| Integration time range [µs] | 1 - 80 | 1 - 80 |
| Region of interest | Yes | Yes |
| Min region size [pixels] | 160 x 120 | 160 x 120 |
| Analog-to-Digital (ADC) [bits] | 16 | 16 |
| Command and control | GigE Vision | CameraLink |
| Digital output format | GigE Vision [16 bit] | CameraLink [16 bit] |
| Trigger | In or out via SMA [configurable] [not for 9 Hz] | In or out via SMA or in via CL-CC1 [configurable] |
Product Selector Guide
| Part number | Description |
| XEN-000646 | Gobi+ 640 GigE |
| XEN-000645 | Gobi+ 640 CL |
| XEN-000647 | Gobi+ 640 GigE [9 Hz] |
Software and accessories
Our cameras are compatible with a wide variety of lenses.
We do not manufacture our own lenses, but instead offer a variety of third-party lenses that can be purchased directly from us. We guarantee compatibility for any lenses purchased directly from Xenics.
The Xenics product range includes several products that require a frame grabber card to connect the camera to a PC.
The Euresys GRABLINK full, Imperx VCE-CLEX01 and National Instruments PCIe-1433 frame grabbers are fully integrated in Xeneth and the Xeneth SDK. This means that you can use Xeneth software both to control the camera and to grab images, making abstraction of the proprietary frame grabber software.
Other frame grabbers properly integrating the CameraLink and GigE Vision protocol can be used in Xeneth and the Xeneth SDK, however only for command and control of the camera. To grab images, you rely on the dedicated software provided by the frame grabber vendors.
Xenics develops flexible and modular cameras resulting in a wide variety of camera interfaces. All these interfaces require unique cabling which we keep in stock. Next to interface cables we also offer separate power supplies.
Xenics ships its infrared cameras all over the world in high-grade custom cases. As our infrared cameras are of different sizes, we have several case-types in stock guaranteeing a tight fit. The cases are made of polypropylene which makes them very sturdy. They are dustproof, watertight, stackable and can cope with temperatures between -40 °C and 80 °C. In addition, they are equipped with an automatic air pressure compensation valve allowing us to ship the cameras all over the globe.
Most of our infrared cameras come with a standard hardshell case upon purchasing.
